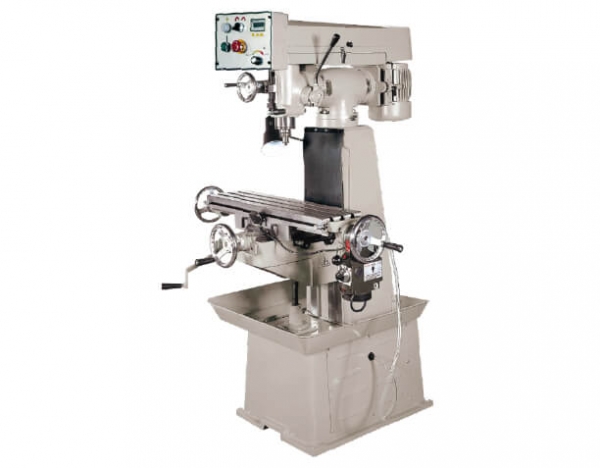

CK-830I Vertical Milling Machines
Product Name : Vertical Milling Machines
Product No : CK-830I
PRODUCT CHARACTERISTICS
Heavy duty milling machine CK-830I
  • Variable speed frequency drive allows speeds from 200 to 2250RPM
  • Fold up safety handles
  • Head tilts to 90o both ways. 360o rotation on horizontal surface.
  • Lower noise and convenient operation
  • Table locks for high rigidity
  • Cast iron construction through out machine
  • Forward/reversing switch with emergency stop
  • High precision ground vertical and cross ways
  • Single stop with micro-adjustable setting
The is heavy duty milling machine compared to other similar products belongs to high quality level
Inquiry
MODEL NO.CK-830I
SPINDLE TAPER MT3 or R8 or NT30
SPINDLE MAX. TRAVEL 3-1/2”(88.9mm)
SPINDLE SPEED 200~2250RPM (Inverter)
DISTANCE, SPINDLE TO TABLE SURFACE(Z) 2.5”~19”(65-480mm)
SIZE OF WORKING TALBLE 8”x30”(205~760mm)
T-SLOTS SIZE(NUMBER) 3/8” (3 slots)
MAX. LONGITUDINAL TRAVLE (X) 18-1/2” (470mm)
MAX. CROSS TRAVEL (Y) 8” (200mm)
DISTANCE, VERTICAL TRAVEL OF TABLE (Z) 18”(455mm)
SWING 7.6” (195mm)
LEAD SCREW PITCH 1”x8 TPI or 3mm
VERTICAL HEAD TILT ANGEL (R &L) 90
RAWM SWIVELING ANGLE 360
MOTOR 1.5HP 3PH
NET WEIGHT (APPROX.) 450KGS
SHIP WEIGHT (APPROX.) 1set545kgs/ 2set 1000kgs
PACKING (1SET) 44” x44” x 76”
PACKING (2SET) 44-1/2”x 56” x 76”
ARM TRAVEL NO
OPTIONAL: D.R.O. system, Power feed , Coolant Pump System & Chip Tray, Chip Trap (only), Enclose Stand, CE standards parts
